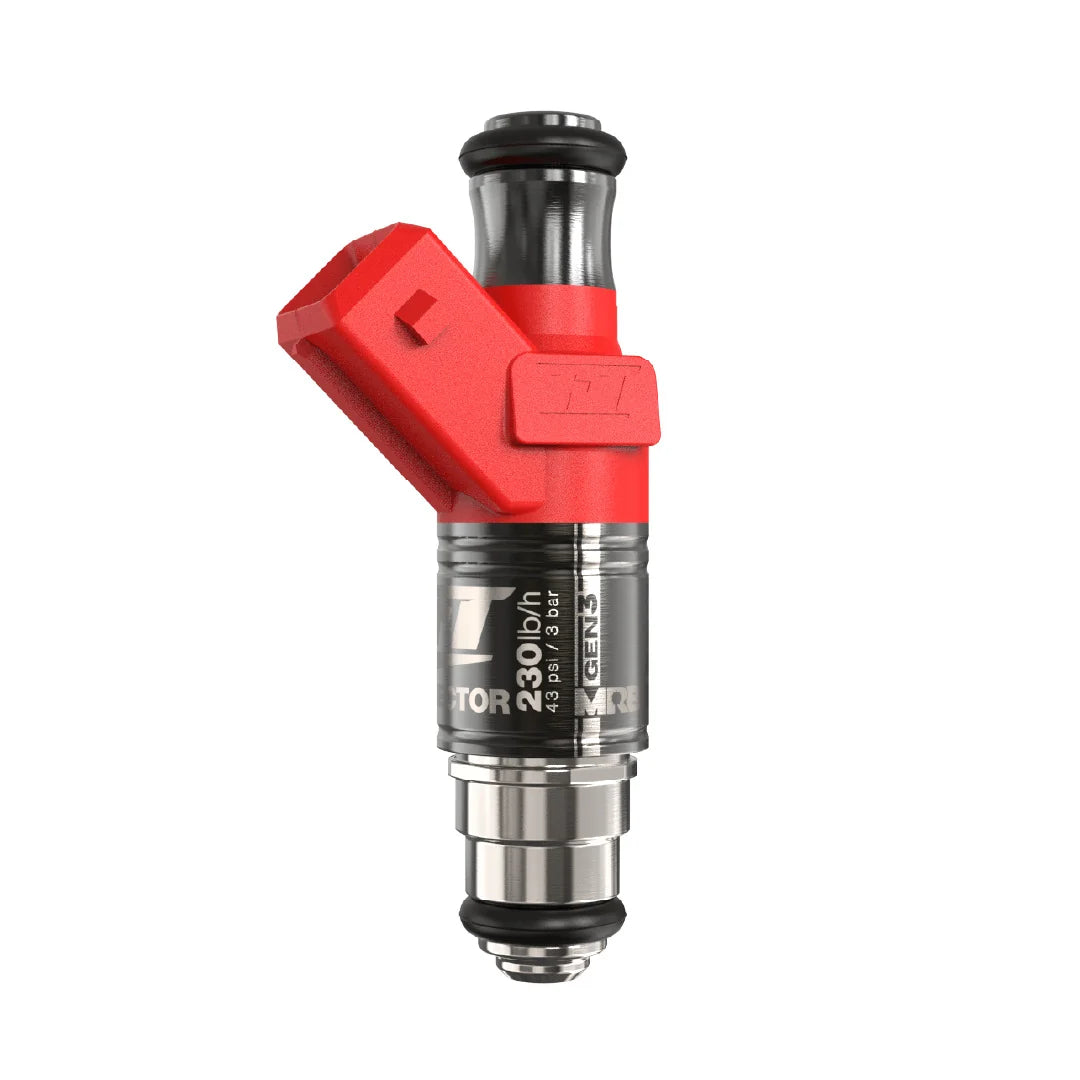

FT Injector 230 lb/h GEN 3

SKU: 5010119164

The FT Injector 230lb/hr is a high impedance fuel injector from the FT Injector family, no Peak and Hold driver is required. The FT Injector is compatible with all available fuels (gasoline, ethanol, alcohol, nitro-methane, nitro-propane, MTBE and ETBE). Featuring EV1 connectors with silver plated terminals for superior conductivity and corrosion resistant internal components.

Key Generation 3 Upgrades:

• New optimized internal coil
• Next generation spray pattern
• New needle geometry
• Elimination of internal filter/screen
• Shorter Dead-Time (faster and more precise response)
• Improved idle control precision
• Refined operation at low RPM
• Greater stability across the entire operating range

DOWNLOAD MANUAL

FEATURES

• REAL flow, all injectors are tested, and calibrated to ensure linearity, repeatability and accuracy for all cylinders.
• It has internal components resistant to corrosion, guaranteed by the sanitization test carried out on all raw material used.
• Compatible with any type of fuel (Gasoline, Ethanol, nitro-methane, nitro-propane, MTBE and ETBE)
• Compatible with any ECU on the market
• Fuel Tech warranty and support
• Project developed prioritizing the quality and durability of the injector.

TECHNICAL DESCRIPTION

• High impedance
• Coil resistance: (8.2 - 8.1) Ohms
• Ingress protection Rating: IP67 / NEMA6

DIMENSIONS:

1 - Overall height - 74 mm (2.91”)

2 - Overall width - 18 mm (0.71”)

3 - Top O-ring diameter - 14.50 mm (0.56”)

4 - Tip - 4.1 mm (0.16”)

5 - Bottom O-ring diameter - 14.50 mm (0.56”)

PRODUCT CONTENT:

• FT Injector (s)
• 1 Manual

WARRANTY: 90 days
